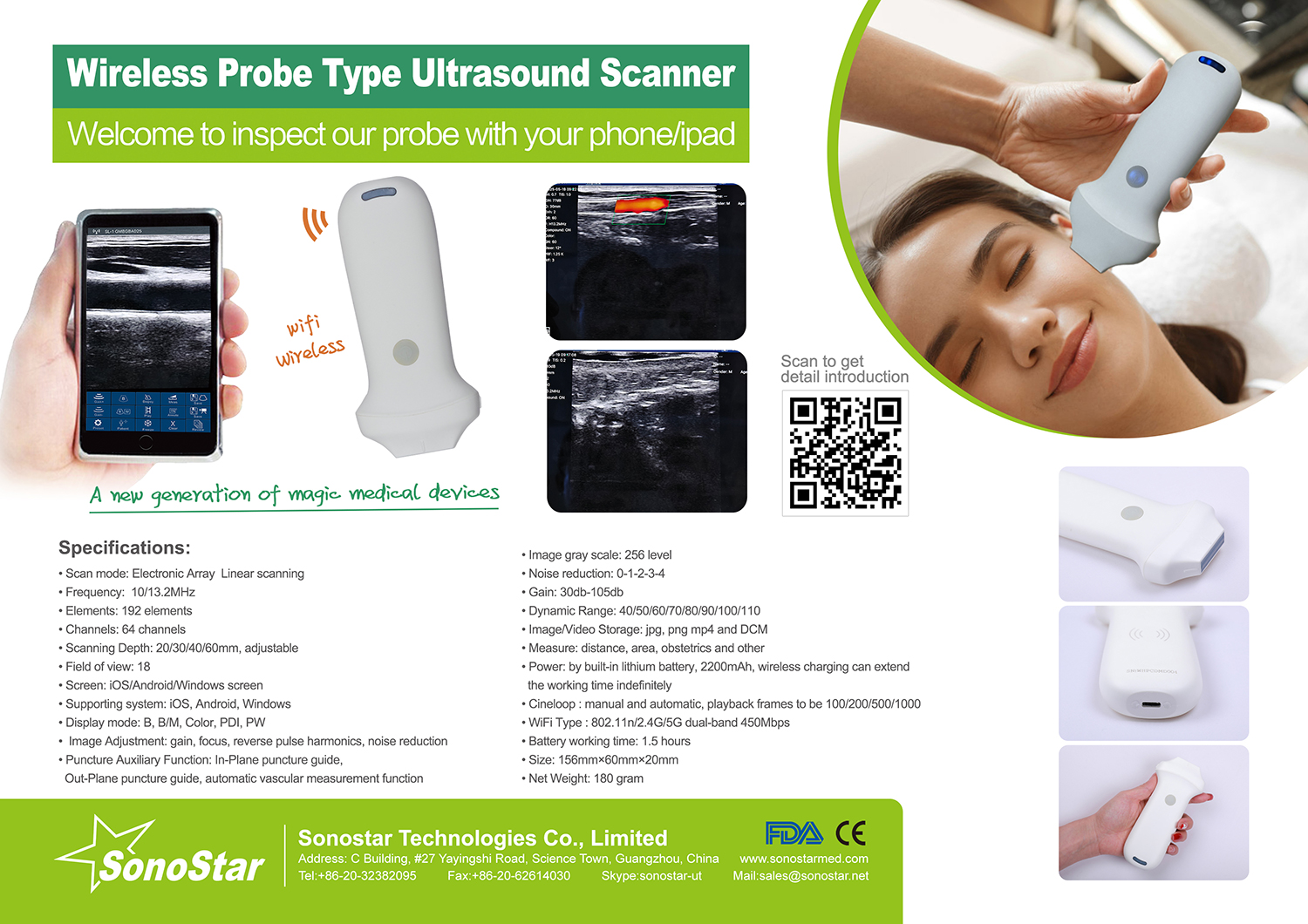

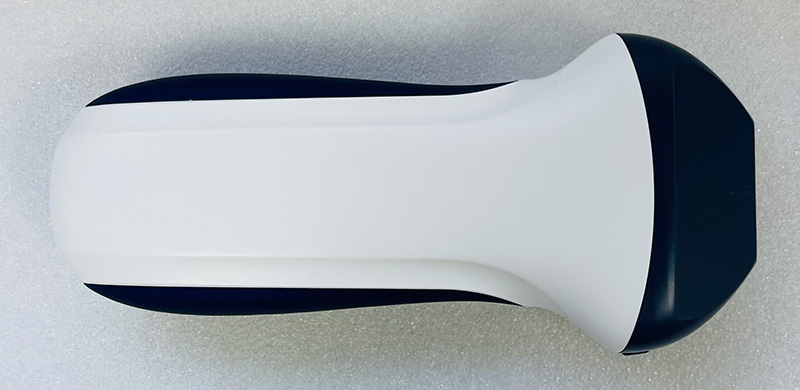

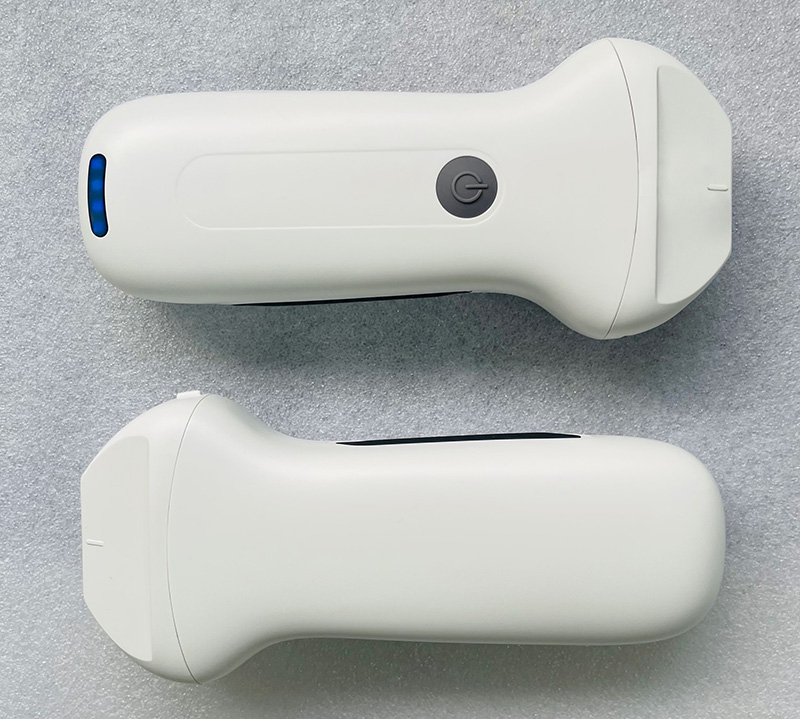

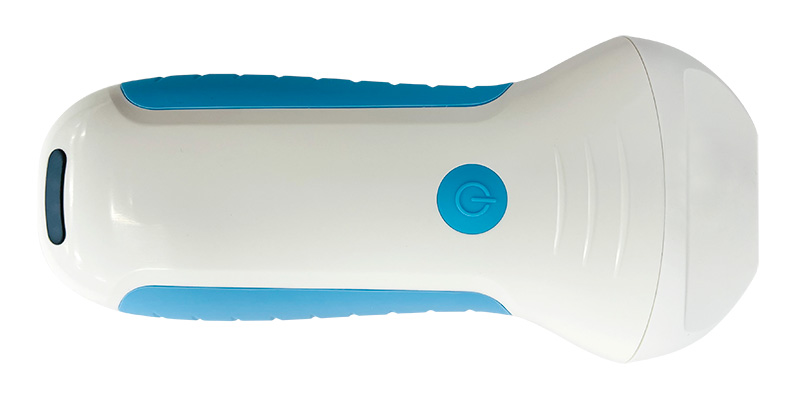

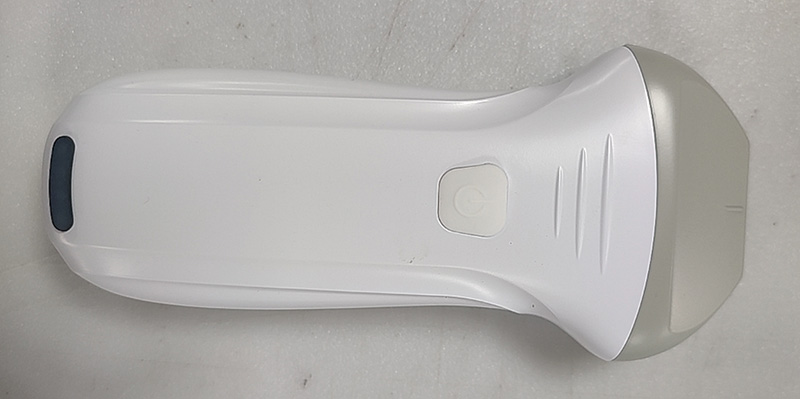

8N

DA8N

DC8N

• Scan mode: Electronic Array  Linear scanning

• Frequency:  10/13.2MHz

• Elements: 192 elements

• Channels: 64 channels

• Scanning Depth: 20/30/40/60mm, adjustable

• Field of view: 18

• Screen: iOS/Android/Windows screen

• Supporting system: iOS, Android, Windows

• Display mode: B, B/M, Color, PDI, PW

•  Image Adjustment: gain, focus, reverse pulse harmonics, noise reduction

• Puncture Auxiliary Function: In-Plane puncture guide, Out-Plane puncture guide, automatic vascular measurement function

• Image gray scale: 256 level

• Noise reduction: 0-1-2-3-4

• Gain: 30db-105db

• Dynamic Range: 40/50/60/70/80/90/100/110

• Image/Video Storage: jpg, png mp4 and DCM

• Measure: distance, area, obstetrics

• Power: by built-in lithium battery, 2200mAh, wireless charging can extend the working time indefinitely

• Cineloop : manual and automatic, playback frames to be 100/200/500/1000

• WiFi Type : 802.11n/2.4G/5G dual-band 450Mbps

• Battery working time: 1.5 hours

• Size: 156mm×60mm×20mm

• Net Weight: 180 gram

>>Catalog Download
