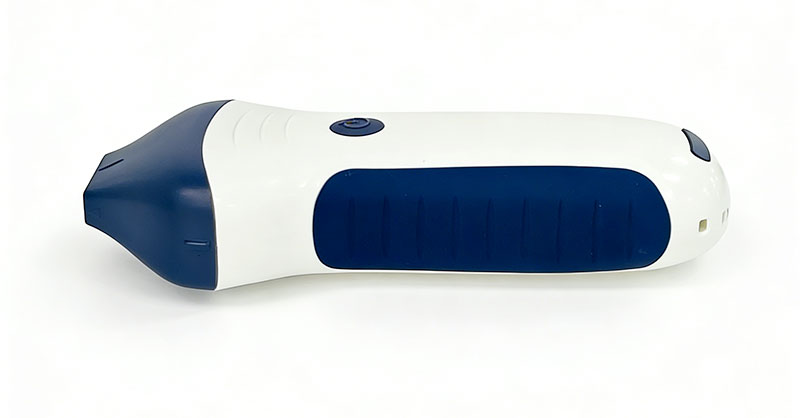

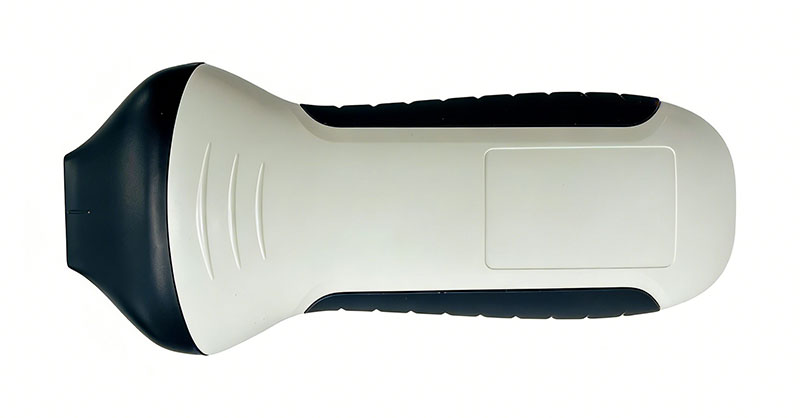

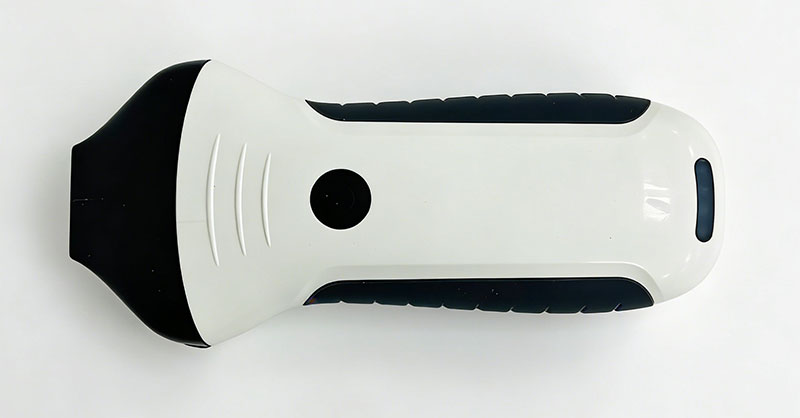

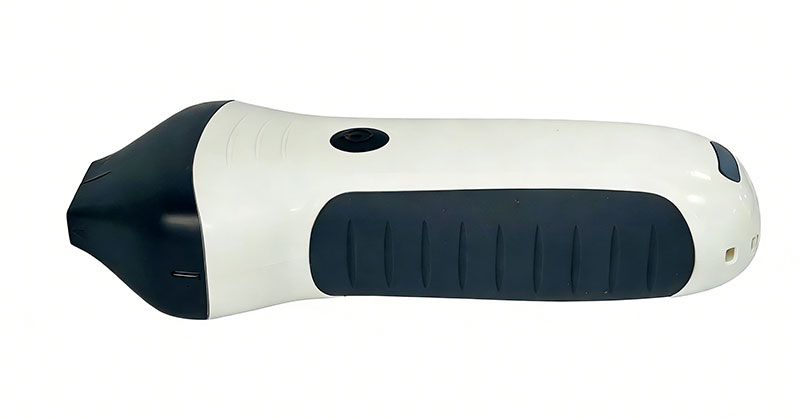

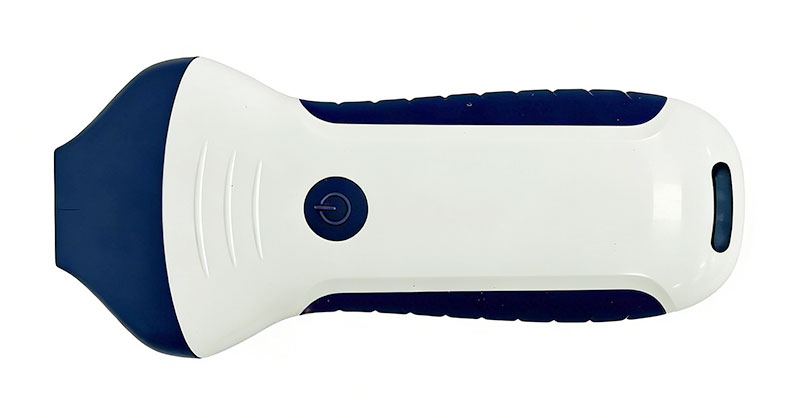

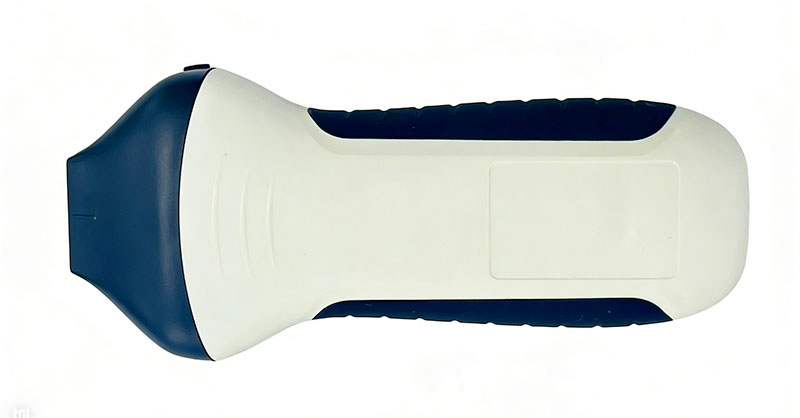

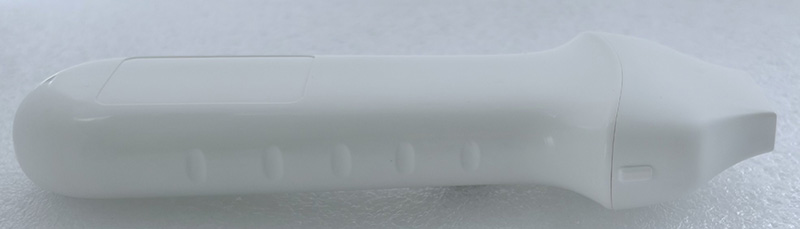

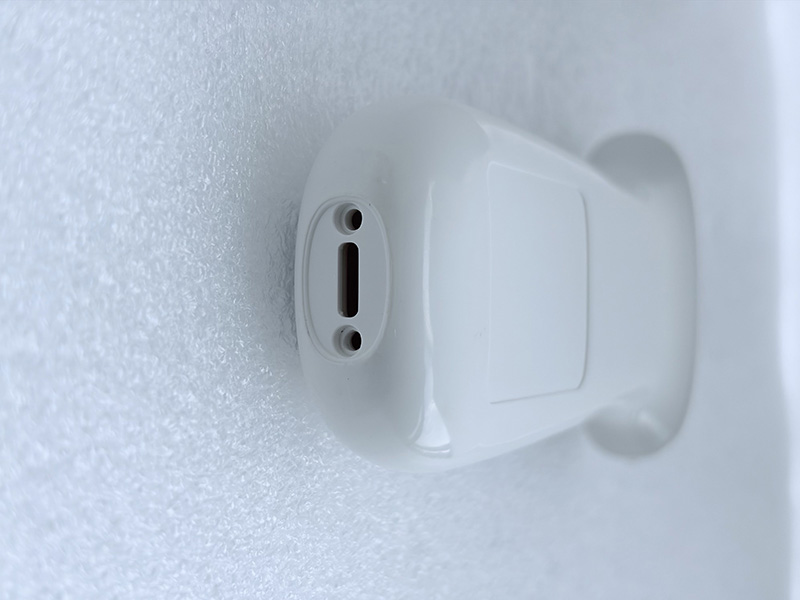

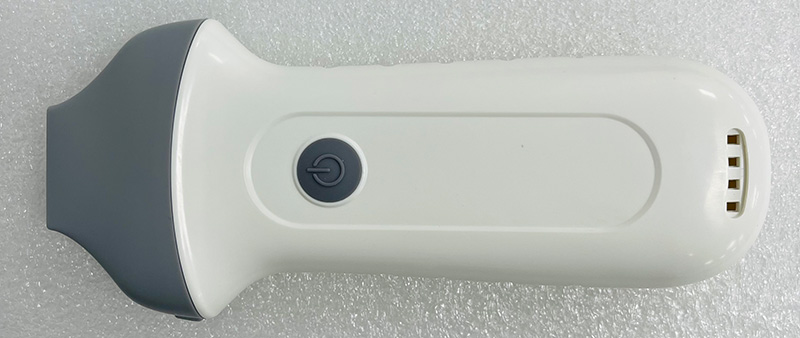

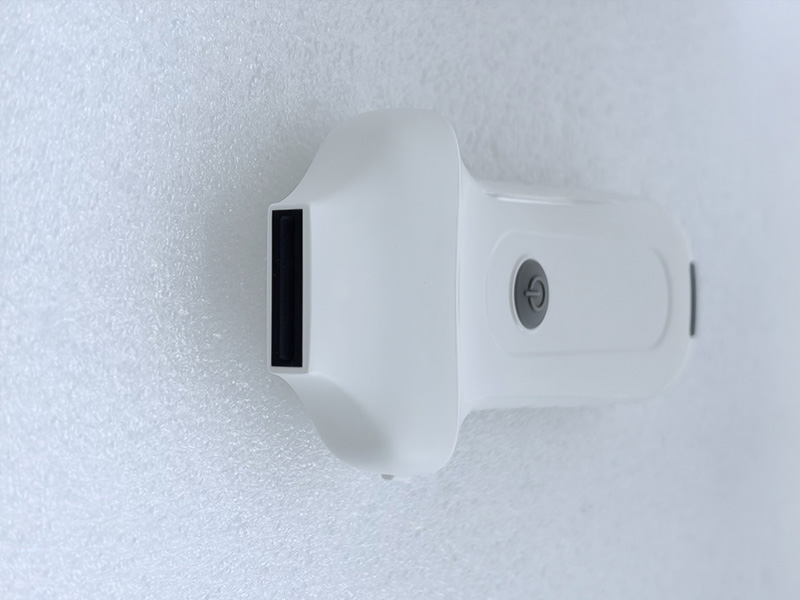

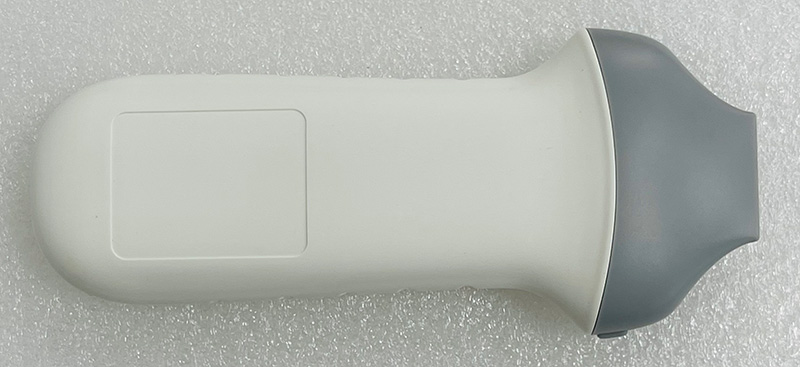

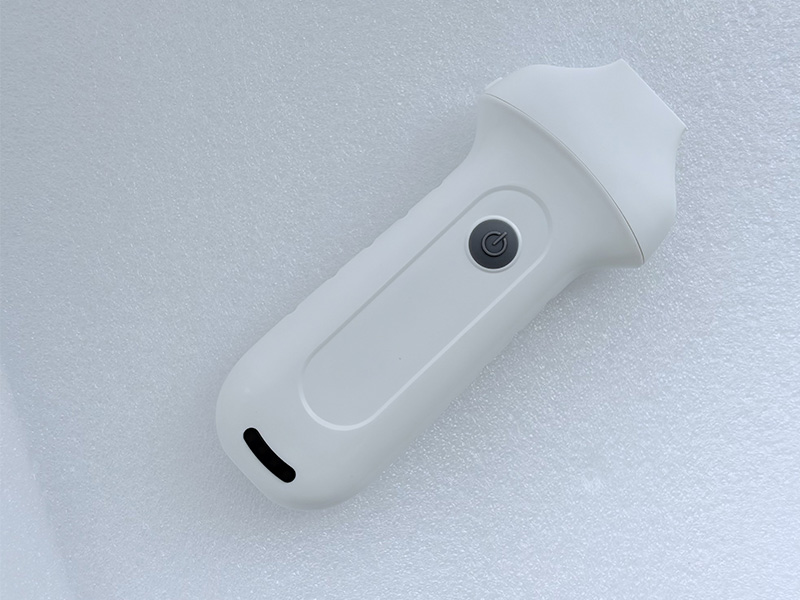

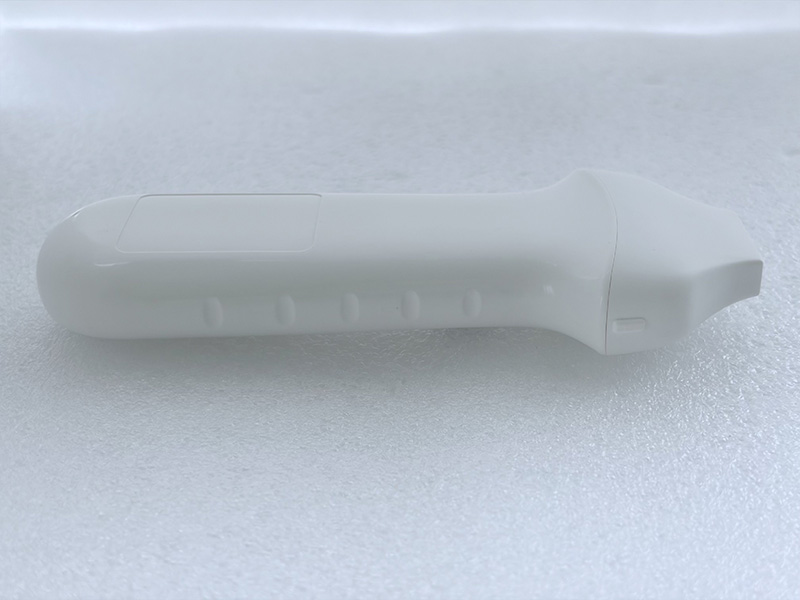

DB7H (Plus Series, larger battery version) (VIP Exclusive)

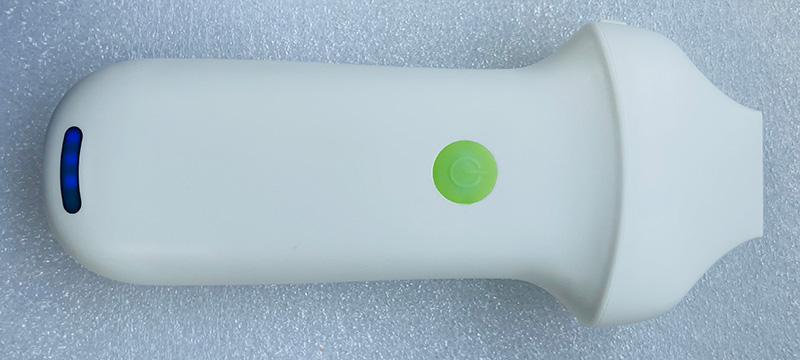

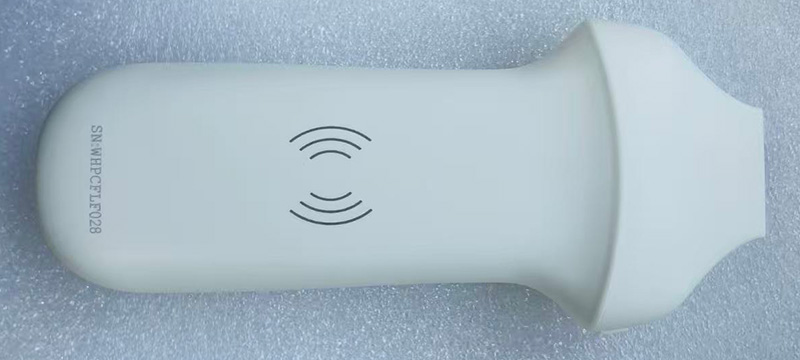

DC7H (customized, larger battery version) (VIP Exclusive)

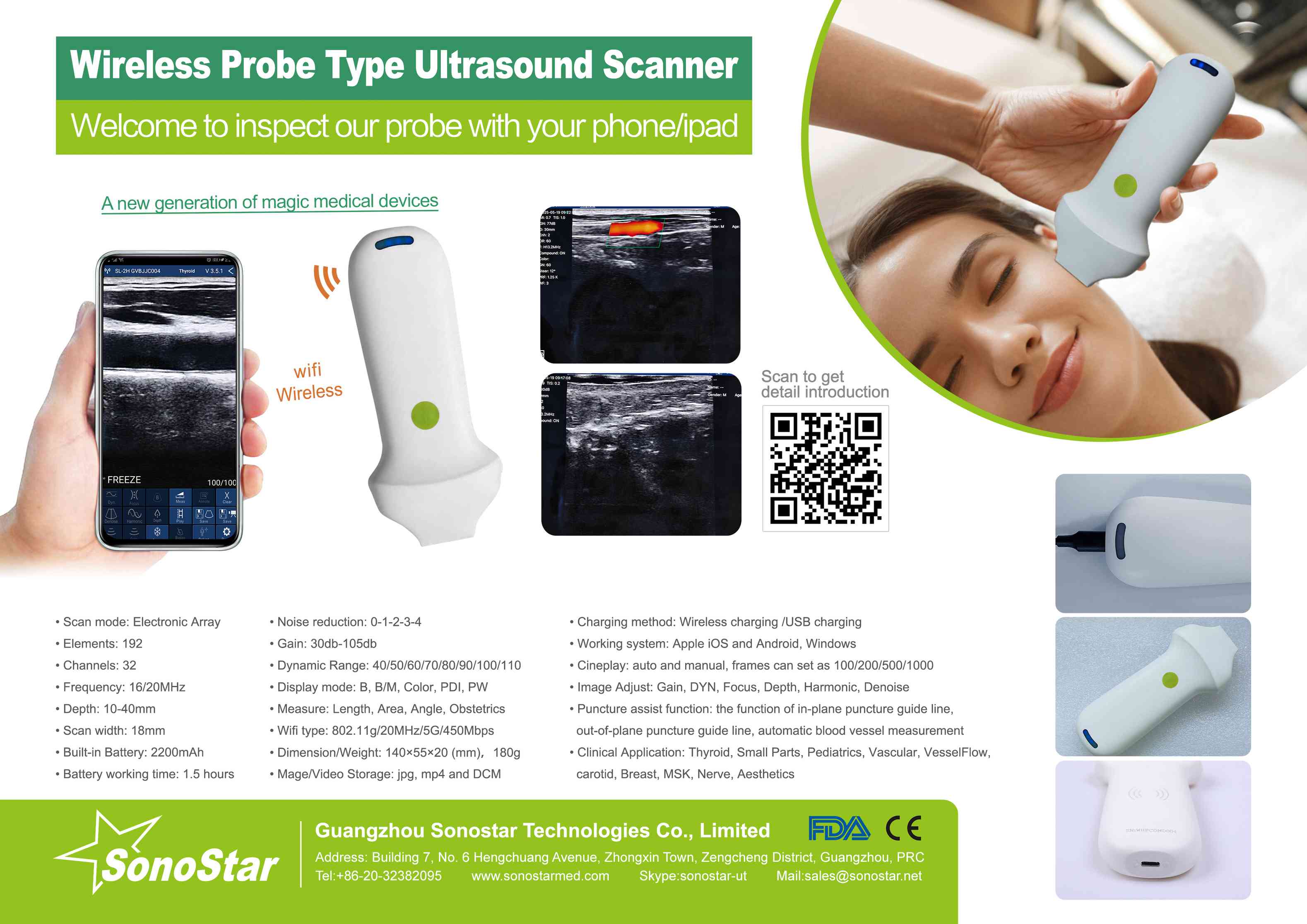

• Scan mode: Electronic Array, Electronic linear array scanning

• Elements: 192

• Channels: 32

• Frequency:  linear probe 16/20MHz

• Scanning Depth: Linear 10-40mm, adjustable

• Scan angle: Linear L18

• Screen: Smart phone or tablet screen

• Supporting system: iOS, Android, Windows

• Display mode: B, B/M, Color, PDI, PW

• Image gray scale: 256 level

• Noise reduction: 0-1-2-3-4

• Gain: 30db-105db

• Dynamic Range: 40/50/60/70/80/90/100/110

• Image/Video Storage: Store on mobile phones, Tablet PC

• Subject: Thyroid, Small Organ, Pediatric, Vascular, Carotid, Mammary, Musculoskeletal, Blood Flow, Neurological

• Power: by built-in lithium battery, 2200mAh

• Battery working time: 3 hours

• Size: 156mm×60mm×20mm

• Net Weight: 230 gram

• Scan mode: Electronic Array, Electronic linear array scanning

• Elements: 192

• Channels: 32

• Frequency:  linear probe 16/20MHz

• Scanning Depth: Linear 10-40mm, adjustable

• Scan angle: Linear L18

• Screen: Smart phone or tablet screen

• Supporting system: iOS, Android, Windows

• Display mode: B, B/M, Color, PDI, PW

• Image gray scale: 256 level

• Noise reduction: 0-1-2-3-4

• Gain: 30db-105db

• Dynamic Range: 40/50/60/70/80/90/100/110

• Image/Video Storage: Store on mobile phones, Tablet PC

• Subject: Thyroid, Small Organ, Pediatric, Vascular, Carotid, Mammary, Musculoskeletal, Blood Flow, Neurological

• Power: by built-in lithium battery, 2200mAh

• Battery working time: 3 hours

• Size: 156mm×60mm×20mm

• Net Weight: 230 gram
